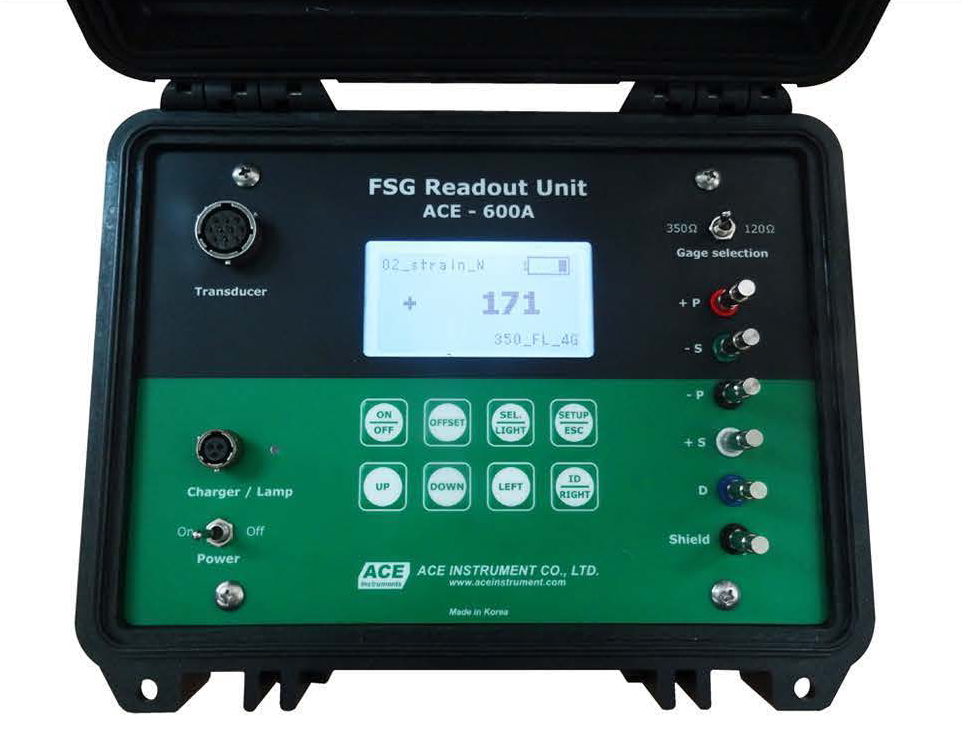

ACE-600A

The ACE-600A is easily accessible to any foil strain gage ofThe ACE-600A is easily accessible to any foil strain gage of 120Ω or 350 Ω gage of input resistance full, half and quarterbridges.There is a max. 32ea of programming ID setting function. Bysetting the conversion coefficient, zero point, and unit of usefor each ID, you can measure the final engineering unit valuerequired by the user according to the set ID.In order to effectively extend the battery life, it has a 10minute unit auto shut-off function and a nickel-metal hydriderechargeable battery allows for 20 hours of continuous useon a single charge.The external case of ACE-600A is made of highly endurablewaterproof ABS plastic to stand and vibration or impact withhigh reliability.

Functions

• Functionso Power on & off

• Selectable auto power saveso

• Mode changeo

• Selection of full, half and quarter bridgeo

• Setting the conversion coefficient, zero point, unit ofuse for each ID

• Section of backlighto

• Adjust screen brightnesso Rechargeable battery

Features

• High precision and resolution capacity

• Clear view on large LCD screen

• Showing remaining battery

• Possible to use in high and low temperature (LCD brightness adjustment)

• Continuous measuring for 20 hours (with nickel-hydride rechargeable battery)

• Eliminate failure rate by adopting Membrane switch

• Programming ID setting function enables measurement in engineering units
