SJ-8000, 8100

Sungjin

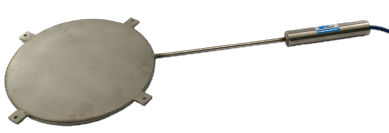

VW type Model SJ-8000 is used to measure ground soil pressure. Model 8000 is standard type and measure whole pressure that affect at the embankment work, and is wall type to measure soil pressure at the retaining wall.
Our earth pressure cell measure stress of mass and direction in embankment dams and meausre the back soil pressure at the retaining wall and measure the change of soil pressure by the load of fill in ground.
At the tunnel, stress of tunnel linings is measured by earth pressure cell.

Description

Application
* Measurement of pressure volume and distribution to foundation ground
* Measurement of contact pressure of foundation ground with fill-up ground
* Applied pressure measurement to structure

Feature
* High stability of available operation in interior enviroment
* High repeatability and responibility by no effect from cable length and change of resistance
* Optimum high sensitivity design by application
* Built-in high accuracy thermistor and lightening protection

Component
* Earth pressure cell main body
* cable
