Model 1410

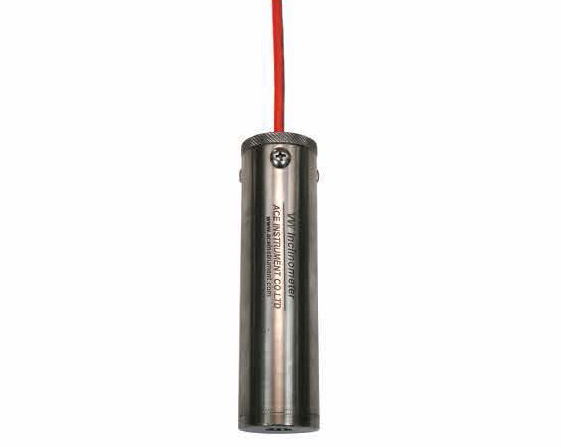

Model 1410 VW Inclinometer is designed to measureModel 1410 VW Inclinometer is designed to measureinclination in stru ctures such as buildings, dams andembankments. The merit ofVW inclinometer is using frequencysignal so that it is possible to measure precise throughout highresponsibility, resolution and reproducibility. For these reasons,model 1410 inclinometer provide reliable measurement.
Model 1410 need to install the sensor bracket first at placewhi ch is expected slope and building structure .
Whileinstallation, it is required to check initial value and attach theand attach theVW inclinometer according to slope direction.VW inclinometer is able to express the displacement ofmeter unit (settlement or heave, concentration or horizontaldisplacement) making with VW beam sensor after beingattached to the aluminum square pipe of gage with 1 m or2m as like ELS beam sensor, also is sufficiently used toknow the outline of settlement and the size of absoluteamount of the displacement in case of connecting to the endbracket of beam sensor. The VW Inclinometer incorporatesa circular level on its top to aid adjustment and installation . Itis equipped with a temperature device for compensating fortemperature variations.
