Model 4240

ACE Instruments

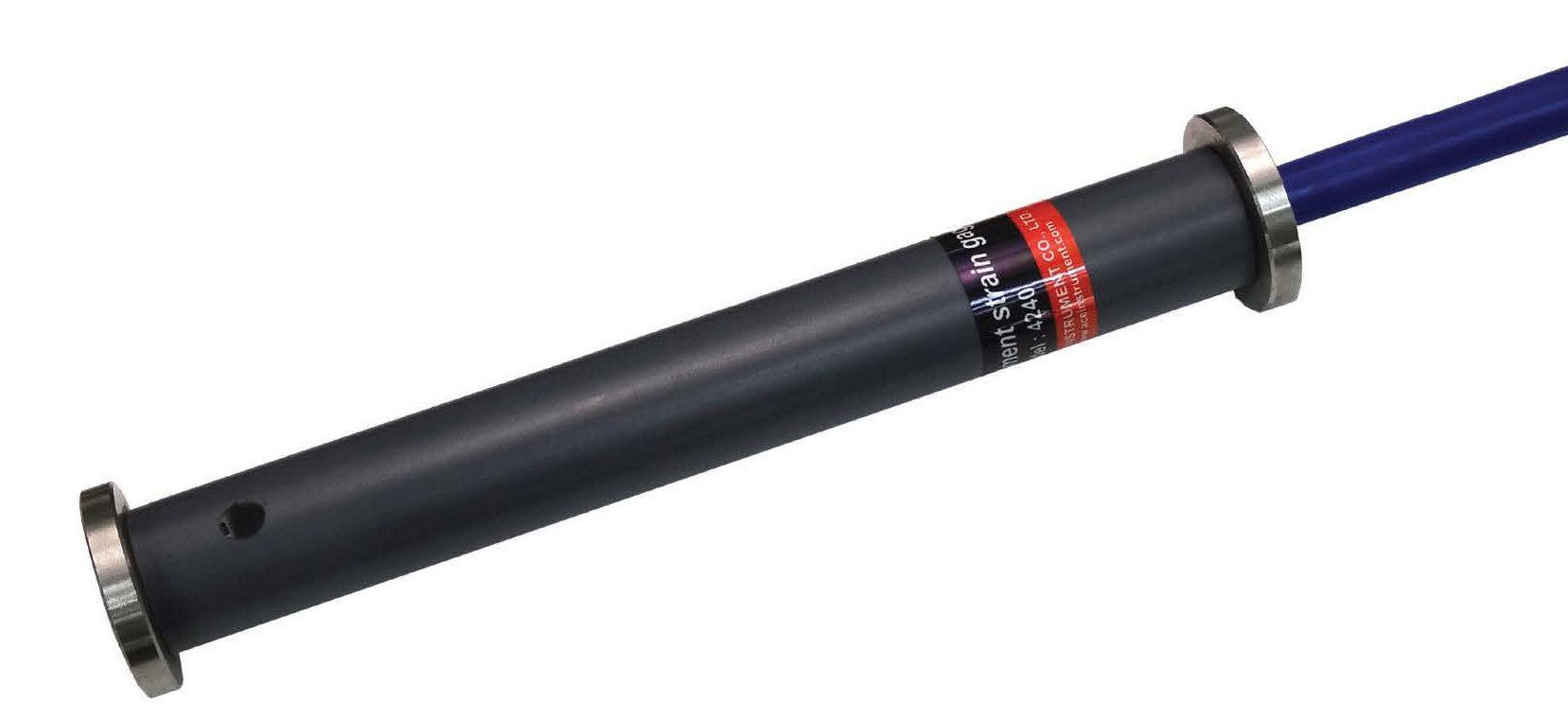

Model 4240 FSG(foil strain gage) embedment straing age has structure that flange is attached in both ends ofstainless steel and in the interior of body foil strain gage isstuck with suitable strength.The concrete deformation is transmitted to body and in theattached FSG also, minute distortion happens, this output istransferred to output device and displayed in mechanicalunit.

Description

And according to provided gage factor, you cancalculate deformation or stress with easy.This model is composed with PVC and stainless steel forpreventing waterproof and rust so that it allows stability andreliability in extreme environments.

Features

High precision of epoxy molding in the part of cable connection enduring impactct
Stability and reliability in extreme environmentct
Possible to dynamic measurement

Applications

Model 4220 arc welding strain gage is designed for dynamic strain ratio from bridge supporting system, damsite and power plant. Also, It is possible to weld directthrough out mount block.
