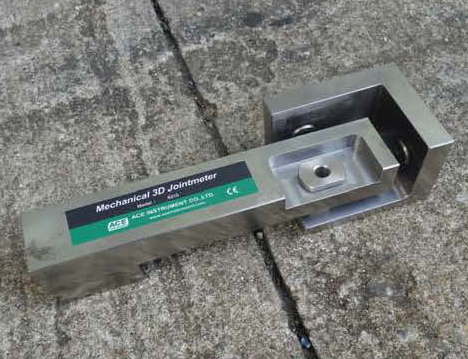

Model 6310 3D mechanical Jointmeter

Model 6310 3D mechanical Jointmeter is designed that itcan easily measure displacement and direction andprogressing tendency of joint parts of concrete dams, tunneland bridge pier and abutment, using dial gage.

To install it, the 3D lead bracket and target be locatedinstallation position by jig then make boring by hammer drill.After grouting anchor, inserting portable micrometer or dialgauge to the designated measurement location, thedisplacement can be measured by manually. It canmeasure several place with low cost.

Features

• Simple installation and easy measurement

• Low price

• Measuring several places with one micrometer

Applications

VW crackmeters are useful for measuring displacement atjoints, and cracks in concrete structures or rock. Model1322 is useful for measuring small displacement such asnuclear power plant and tiny crack at ultra strengthstructures. Model 1325 is designed to small size fornarrowish place.

• Measurement of displacement at joints and cracks instructures that may be affected by nearby excavationand construction activities.

• Measurement of crack in structures that haveexperienced seismic activity.
