VW type 3D crackmeter SJ-3100, 3110, 3115, 3120

Sungjin

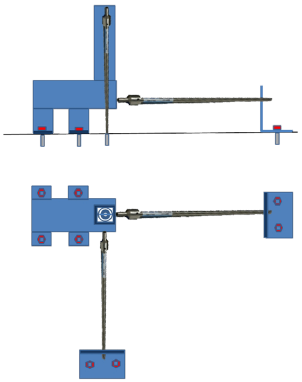

This is a mounting jig that measure displacement as triple
axial by waterproof type displacement meter.
This mounting jig with displacement is installed to measure
movement at the expansion joint and crack in dam or
tunnel or tank.
The design of mounting jig can be changed to meet
purpose at the site.
The Max. range of displacement meter is 50mm,
100mm and 150mm.
Feature
* 10m H2O waterproof structure
* High accurate resistance temp sensor mounted
* Various measurement range  from 50 to 200mm
* High stability and high reliability

Component
* Crack meter main body
* Cable
* 3D jig
