ADL-200

ACE Instruments

Data logger refers to several types of sensor devices for storingData logger refers to several types of sensor devices for storingdata to be transmitted according to a temporal change (load,stress, strain, pressure, temperature, displacement, angle, etc.)installed in the field.

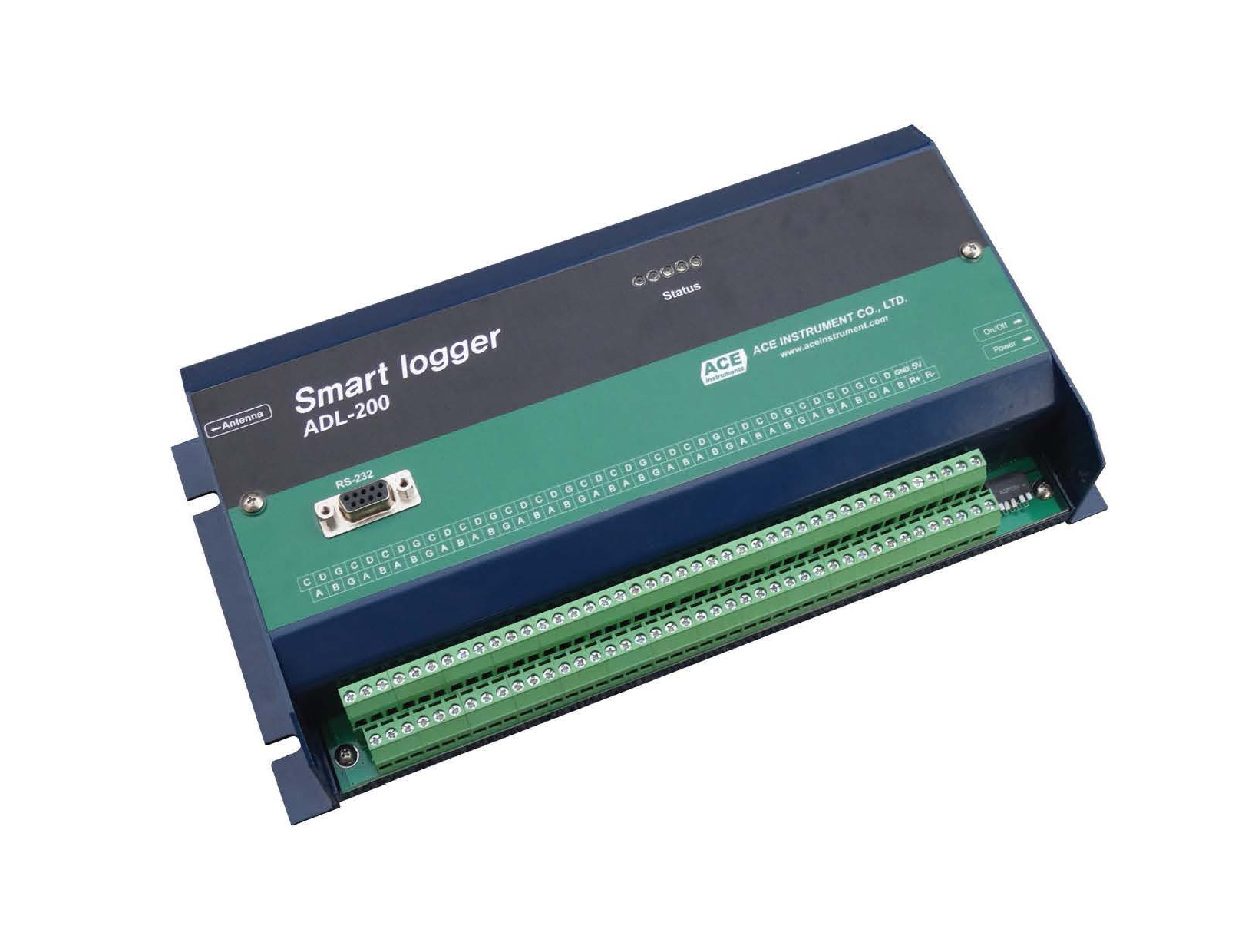

Smart logger ADL-200 is useful when operating independentlyin small field. (Places to install under 16 sensors).It can connect 16 channels of Vibrating wire sensors (includingthermistor 16ch), or mV sensors, or mA sensor channels.
Smart logger has a 2.4G Hz ZigBee wireless modules with builtwayspot and short-range wireless communication antennaport.
Also, it has a RS-485, and RS-232 port for communicationcable by wire communication.Smart logger ADL-200 can be connected to ARF-100 forexpand.

Description

In case of 1 set of smart controller (ARF-100), it controls theIn case of 1 set of smart controller (ARF-100), it controls thesmart logger 7 sets at once. It means that 1 set of smartcontroller is possible to control the sensors of 112ch. Therefore,it is useful when there are many places to install sensors inlarge field.ARF-100 Smart controller and smart logger ADL-200 canoperate as a wireless 2.4G Hz Zig Bee method or wiredcommunication based on RS-485 method.Operating software developed by specializing in the civilengineering field instrumentation for whoever is receiving only2-3 hours training can be easily operated, so very convenientcompared to other products.

Functions

Accuracy of the measurement data, the measurement data stored continuously available
Digital and analog sensors connectedRemote control is possible
Strengthen internal stability by noise killer circuit
Easy operating software
Use 16ch Smart logger at small-worksiteIn a large field, used as MUX in conjunction withARF-100. (A separate device unnecessary)
Possible to connect to the Web monitoringprogram allows ACE-WMP

Features

Digital sensor : Vibrating wire sensor
Analog sensors
- FSG(Foil strain gage) sensor (Full bridge)
- Potentiometer
- LVDT
- Thermistor, RTD temperature sensor
- ELS(Electrolytic level sensor) sensor
- 4-20mA sensor
