ARF-100

ACE Instruments

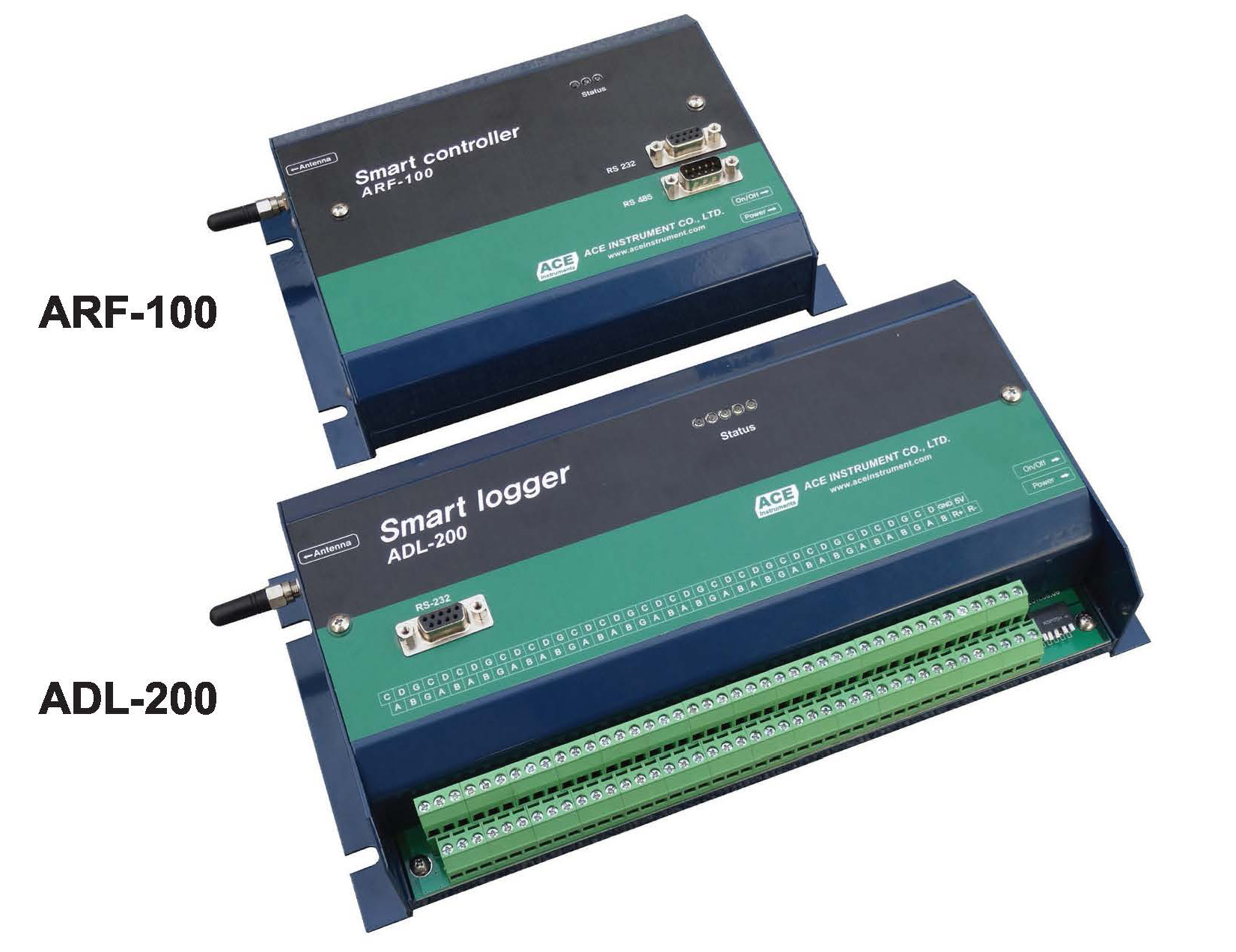

ARF-100 smart controller is an integrated controller to connect and operate multiple ADL-200 smart logger. ARF-100 smart controller is an integrated controller to connect and operate multiple ADL-200 smart logger.The one unit of ARF-100 is configured the 7 sets of smart logger (ADL-200) to a network and it can be access and docommunication control by wired and wireless.For a wired communication, the ARF-100 is attached with RS-232. RS-485 port. To connect wirelessly, Zigbee for short rangehas a built-in wireless modem and an antenna port. Depending on site condition, choose a wired or wireless and configure thenetwork. When communicating with a wireless data communication is possible in the data reaches the maximum distance is200-600m. In order to connect the controller to the computer, the ARF-100 can be equipped with a 3G modem for wirelessremote control is available.

Description

Depending on quantity of sensor at medium field, connecting the 7 sets of smart logger (ADL-200) in the 1 set of smartcontroller (ARF-100) may control the sensors of 112ch. At the large field, when you install the ARF-100 can be increased inmultiplex smart loggers and sensors also quantity in multiples.Using the ARF-100 smart controller of our company, the site such as tunnels, soft ground, large structures, dams, portconstruction and so on will be useful in difficult cabling while allowing the automated measurement and network configuration. In addition, developed for the operation of civil measurement software is very easy to operate anyone who can only receivetraining 2-3 hours so convenient compared to the operating software is too difficult for third-party products. ARF-100 and ADL-200 overcome the line wiring problems will provide a new paradigm of civil measurement in terms ofpracticality and convenience.

Applications

Real-time data required
Restricted entrance of worksiteMonitoring by simultaneous access

Features

Tunnel, cable wiring is optimized in difficult site
Dam sites, optimization of collective site management
