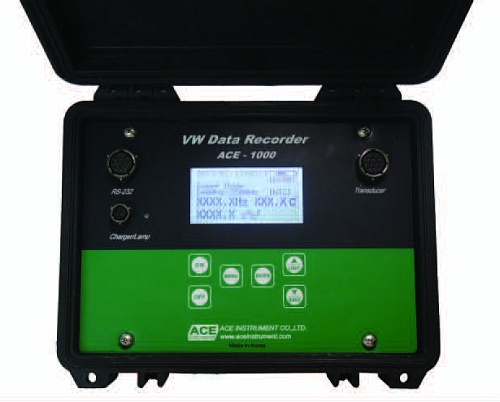

ACE-1000

ACE Instruments

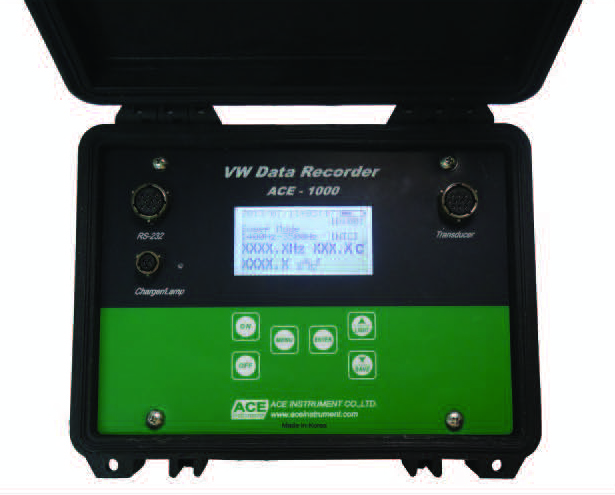

Model ACE-1000 VW data recorder of our company isdesigned with law current of charge circuit of 6 voe so that itcan measure VW sensor that is generating frequency.
VW data recorder, it can be operated with just 6 of membranekeys so that a beginner can use easily.To improve conspicuousness, it adapted 256 x 128 largegraphic LCD that information related with measurement isdisplayed.
So, it is easy to use at job-site at night as backlightloaded in it.It shows Hz for VW sensor's basic unit and selected sweepband on large graphic LCD screen.
Also it marks lower unit ofHz, current time, remained battery, selected temperaturesensor between the thermistor and RTD temperature sensor.ACE-1000, it can be saving 4,000 of measured values about64 data sets, and the data can be transmitting by computerand RS-232 communication.
So it is very useful in a large jobsiteand the software applied in Windows has alignmentfunction that optional alignment of sensor by the IDs, datesand times is possible. As well, capability and quality aresuperior to any existing loggers.

Description

It has select function of engineering unit and select function ofIt has select function of engineering unit and select function ofsweep band as well that it can be connected with any VWsensor from all the companies.Of the 6 keys, select key is to select frequency band and toselect display unit.It automatically raptures the power by 10 minutes (up to 60minutes) to prolong battery's life span more efficiently. And itis loaded with up-to-date of Ni-MH rechargeable battery thatyou can measure for 30 hours continuously. Another mainfunction is that it can control contrast that you can get anaccurate measurement in both hot and cold regions.We used ABS case of impulse endurance that you can use itin any unfavorable condition because it is dealt with moistureand waterproof.

Functions

On-Off function
Auto power break function
Unit shift function
Band shift function
Battery recharging function
Measured data transmission functionThe measured data can be transmitting by computer andRS-232 communication.
Data saving functionYou can save the measured data in the memory.
Data deletion functionYou can transmit the saved data in computer and thendelete the saved data.
Battery indicating functionLCD indicates the battery capacity.
Menu select functionYou can select item about system information andmeasurement in establishment spot.
Contrast of LCD control function

Features

Waterproof, moisture proof, impulse endures and portable type
High resolution and high accuracy of reliance
Possible to use at a low temperatureo Possible to measure at night by backlight function
Function for adjusting resolution
Automatic power shutoff function
Charge checking function (LED for indicating charge)
