ACE-1100

ACE Instruments

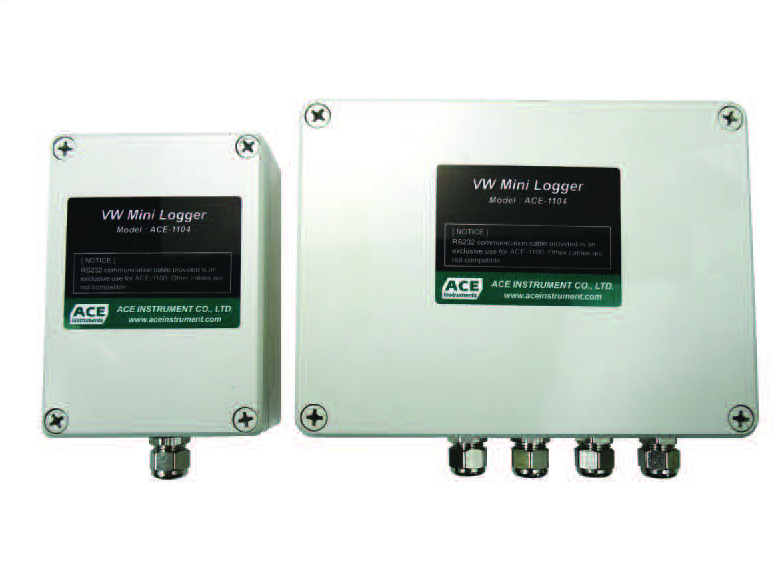

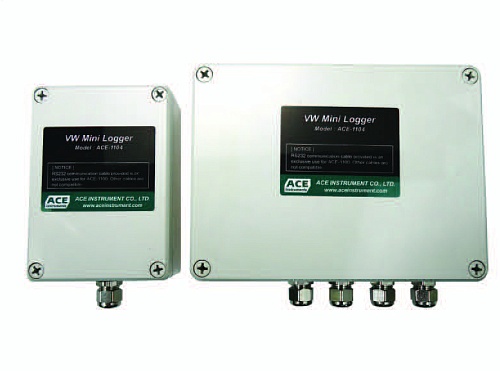

Model ACE-1100 mini logger connects to one VW sensorModel ACE-1100 mini logger connects to one VW sensorand model ACE-1104 mini logger can connect four VWsensors.
These items automatically measure it with highprecision and low cost.This logger is convenient to get data everyday fromagricultural underground measuring to safety check atconstruction work by unmanned operation, connecting fewVW displacement sensors, VW piezometer or VW strain gageevery day.
It's more useful to install this logger on puttingsensor without wires when arranging few measurement toolson slugs and needing a lot of data.It also clears some problems from arranging in long distanceat large scaled working sites to operate unmanned socompletes wiring data acquisition system.

Description

The ACE-1100 it can save 6,000 of measured values, and thedata can be transmitting by computer and RS-232communication.It has data arrangement function, which selects any frequencysignals (Hz) and temperature unit (RTD 2kQ, thermistor 3kQ)Any beginners easily control it.It has high precision and reliability. The AA size alkalinebattery measures for 6 months and in all weather conditions.

Features

User-friendly software
Repeated use by time format at other arranging spots
Most suitable for agricultural survey, safety check oroperating few measurement tools
Reasonably low cost by contrast with the wiring dataacquisition system
Battery is available for 6 months without change
Working in all weather conditions from the wide range ofworking temperature
