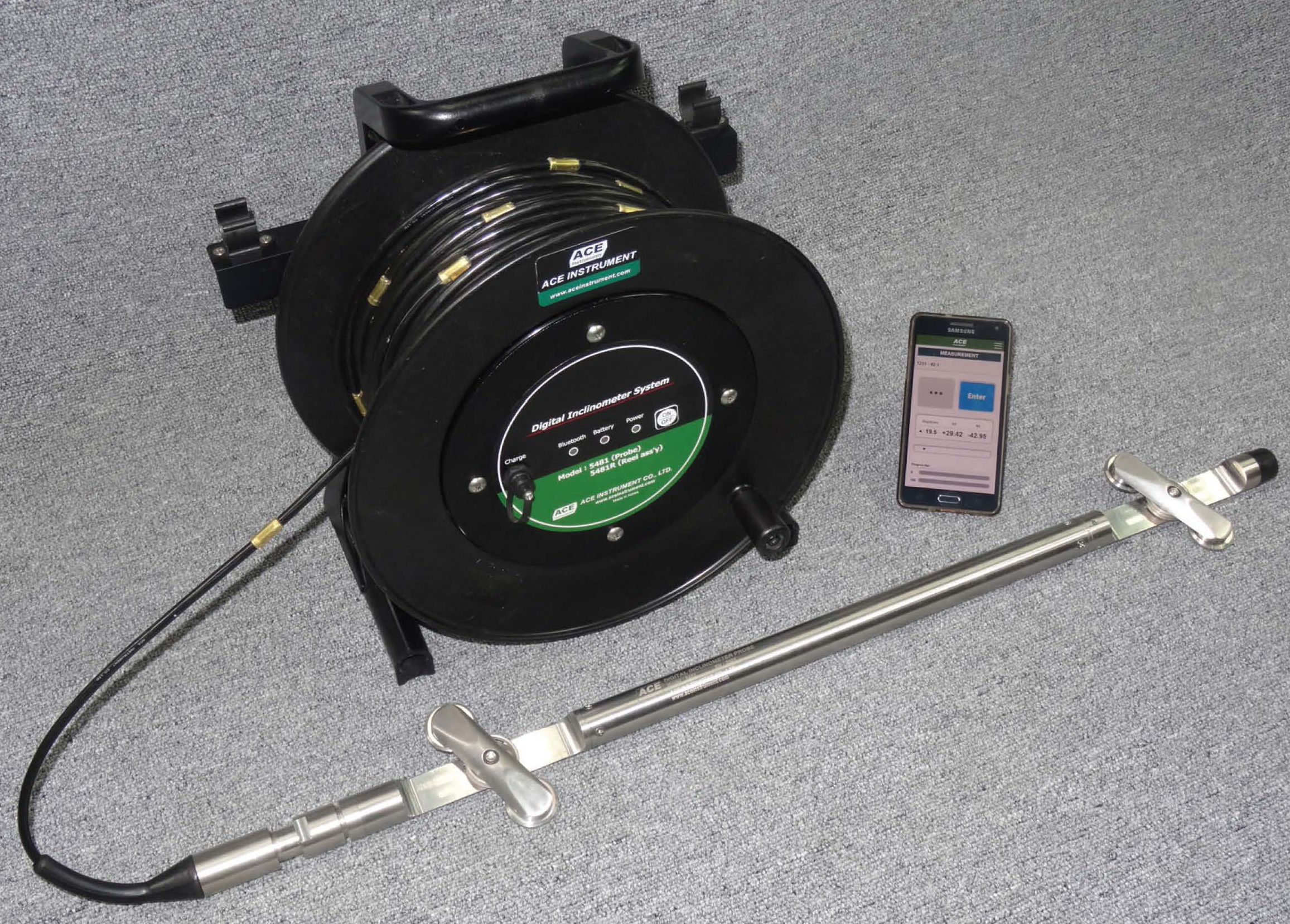

Digital vertical inclinometer system has pursued a development by concentrating on high-performance nature such as responsiveness, ultra-light and high-reliability. Digital vertical inclinometer system includes a lightweight digital inclinometer probe, Bluetooth reel, cable guide and thesoftware as "Inclinometer Collector" for Android-based device.

In case of installed inclinometerIn case of installed inclinometercasing at zone of suspecteddisplacement in a vertical borehole,it is possible to acquire the data tosmart device through digitalinclinometer system.

The data that was acquired at smart device can be transferred to PC by e-mail and it is operated by Geopro software program.Digital inclinometer probe provides excellent resolution and accuracy because itbuilt in ±30° MEMS inclined acceleration sensor and 2-axis electronic circuitinside.

Features

• Included the high precision tilt sensor

• 200m H₂0 water proof

• Included the electric noise protecting circuito

• Dynamic measurement is possible by connectingautomated equipment

Applications

Digital vertical inclinometer system is used tosurvey the horizontal displacement from inside of casing. It is used to monitor subsurface deformations ofthe ground in landslides, embankments, anddams and around deep excavations and tunnels.
