5481H

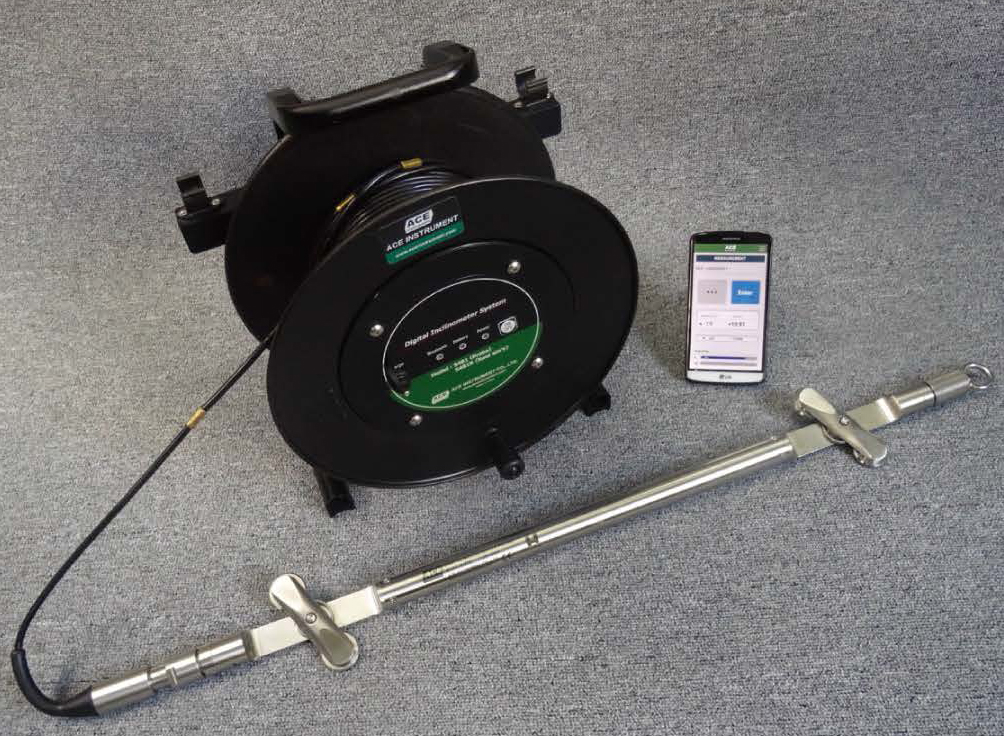

Digital horizontal I slope inclined inclinometer system has pursued a development by concentrating on high-performancenature such as responsiveness, ultra-light and high-reliability.The digital horizontal I slope inclined inclinometer system consists of a lightweight probe and a lightweight Bluetooth cablereel. You can download and run native apps provided by our company on your own or your company's android smart deviceGround displacement is generated in the inclinometer casing which is installed along the horizontal or slope inclineddepending on the surrounding load. The horizontal plane is measured by a horizontal probe, Model 5481 R Bluetooth cablereel, smart device. The slope inclined is measured a slope inclined probe, a model 5481 R Bluetooth cable reel, a smart deviceto acquire data by inserting the probe into the inclinometer casing.

Features

• High-speed measurement

The The stabilization time of 50cm or 1 unit has been improved as 5 seconds responsiveness

• Easy to carry

The digital inclinometer probe, Bluetooth reel, and cableguide are mounted in one carriage so that it is easy to carryand handle at work site.

• Applied durable control cable

The control cable are composed with ∅ 6mm polyurethaneoutside and 0 3mm aramid fiber inside so that it holds over150kg ·f weight.

• Applied lightweight digital inclinometer probe

The probe set has a size of ∅25.4mm x 778mm and weighs1.4kg, which makes it easy to operate the inside of the casingwith small radius of curvature to transmit accurate data.

• The data transitions and store by smart device

It is possible to download app inclinometer Collector atGoogle play store and it can be used in any smart devicesthat android 4.3 or later OS is appliedYou can download the android app (Inclinometer Collector)from the Google Play Store.

• Linkage Bluetooth

The Bluetooth has own module code so that it can connectwith Bluetooth reel and smart device easily.

• Applied rechargeable Bluetooth reel

It is applied rechargeable battery inside of Bluetooth reel.Therefore, it is possible to use 40Hr (based on 20°C)continuously after single charge.

Applications

Digital vertical inclinometer system is used tosurvey the horizontal displacement from inside of casing. It is used to monitor subsurface deformations ofthe ground in landslides, embankments, anddams and around deep excavations and tunnels.
