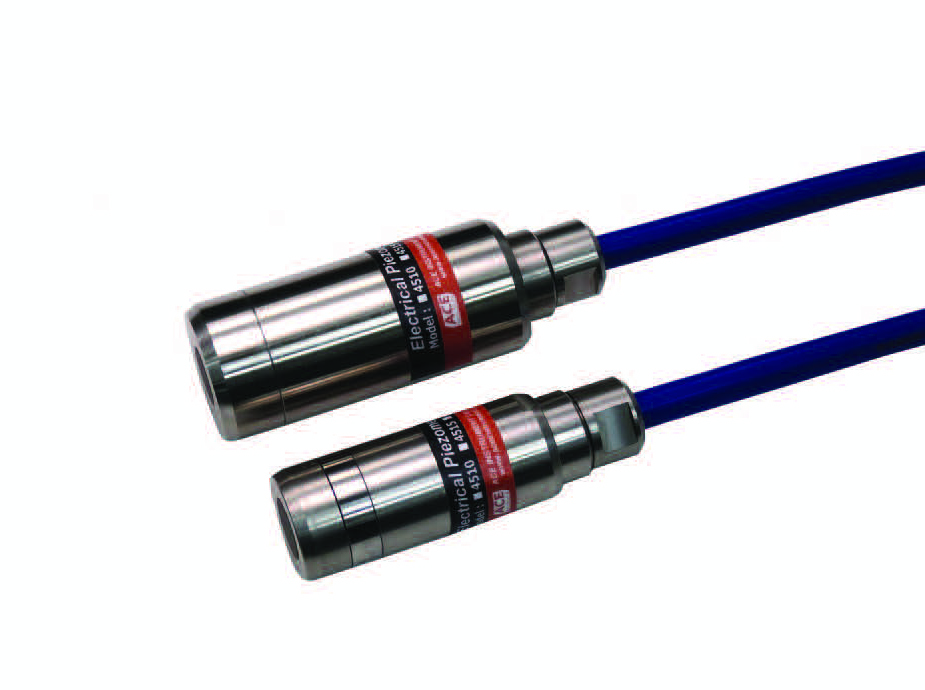

Model 4510 FSG piezometer

ACE Instruments

Model 4510 FSG piezometer has foil strain gage in it, andit converts water pressure transmission in diaphragm intoelectric signal by interaction with foil strain gage.
The principle of FSG piezometer is that resistance factor ofattached foil strain gage changes according to waterpressure or air pressure transmission in diaphragm, andwhen the changed signal transmitted to output device, itdisplays in suitable mechanical unit.
So it can be calculated with easy in pressure unit byprovided conversion factor.

Description

Features

High precision and reliability
Stability and reliability in extreme environment
Possible to dynamic measurement

Applications

FSG/Semiconductor piezometer is designed to measureliquid pressure and pore water pressure within pressurecontainer, pipeline and base part of filling, levee, orperforation.

Measurement of the effects of drainage systems used forexcavations.
Measurement of pore water pressure to determine safetyfactor under excavation or banking.
Measurement of water level to check the performance inrivers, reservoirs, standpipes.
Measurement of pore water pressure to determine slopestability.
Measurement of flows of underground water and waterleakage in embankments, dams and artificial lakes.
Favorable the model experiment
