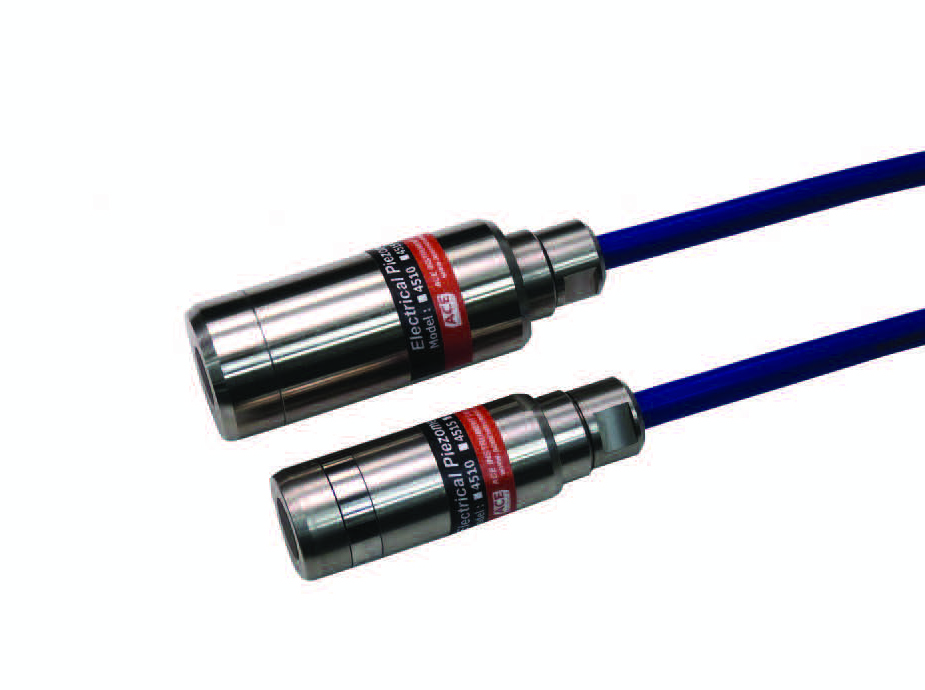

Model 4515 FSG piezometer

ACE Instruments

Model 4515 semiconductor piezometer is manufacturedModel 4515 semiconductor piezometer is manufacturedby semiconductor pressure sensor using 4-20mA outputmethod.
Semiconductor piezometer is highly reliableproduct that is calibrated by the accredited pressure tester.Specially, it is useful at the low pressure measurement(1-2kg/cm2).
It adopts 4-20mA output method, so user caneasily calculate the measured pressure.
The FSG/semiconductor piezometer correct individually andrecord its result in adjustment inspects record. It is usedwith special stainless steel and waterproof, rustproof so thatpermanent measurement is possible.

Description

Features

High precision and reliability
Stability and reliability in extreme environment
Possible to dynamic measurement

Applications

FSG/Semiconductor piezometer is designed to measureliquid pressure and pore water pressure within pressurecontainer, pipeline and base part of filling, levee, orperforation.

Measurement of the effects of drainage systems used forexcavations.
Measurement of pore water pressure to determine safetyfactor under excavation or banking.
Measurement of water level to check the performance inrivers, reservoirs, standpipes.
Measurement of pore water pressure to determine slopestability.
Measurement of flows of underground water and waterleakage in embankments, dams and artificial lakes.
Favorable the model experiment
